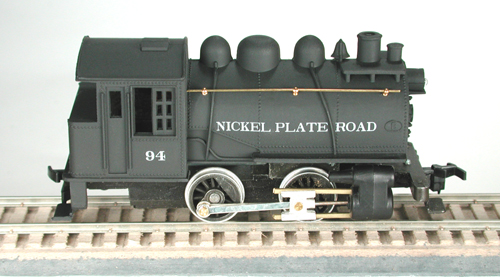

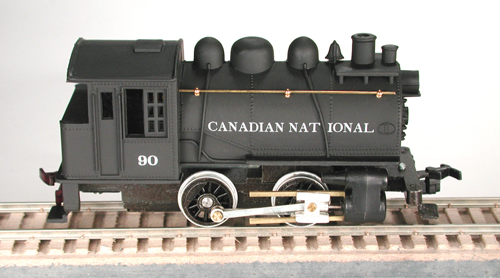

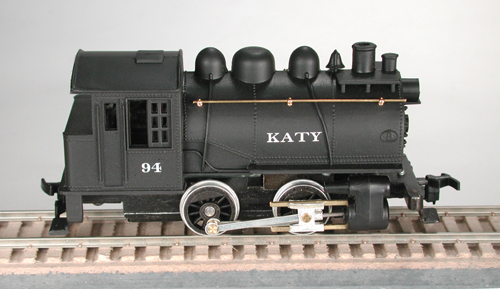

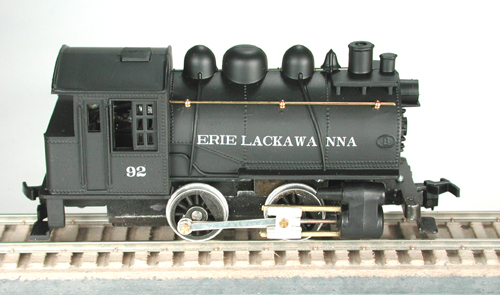

The Super Detail Kit(below) includes the brass parts to be used
on a Bowser, English's Model Railroad Supply and Varney Docksides.

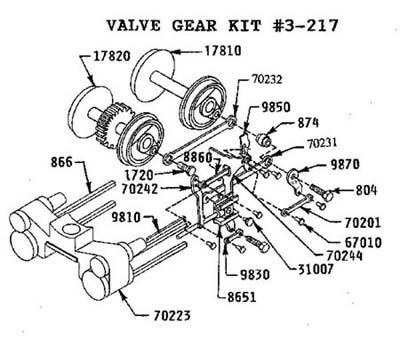

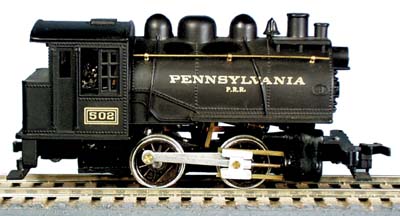

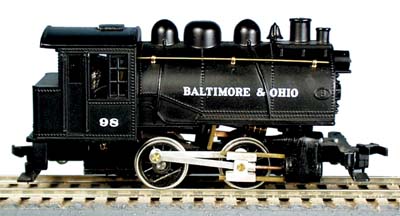

The Valve Gear Kit
(below) includes the brass parts to be used on a Bowser, English's Model
Railroad Supply and Varney Docksides. Please note that the cylinder, drivers
and main rod is NOT INCLUDED because these parts are already on these
Dockside models.

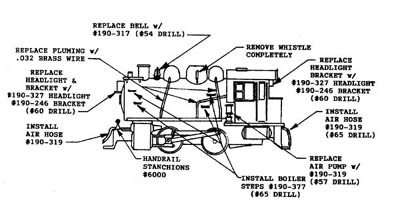

Additional Dockside
Parts: Listed below are a variety
of parts that are available to super detail the Dockside model, or to upgrade
and/or replace parts for the Dockside model. The following are notes about
particular models with application guidelines.
Pilot Coupler
- Use Kadee #5 coupler, spring and cover. Place spring in cast on pocket.
Put coupler in spring and fasten cover in place with a 2-56 screw.
Varney Dockside
- To use underframe #70221, cut away the sides to accept the DC60 motor.
Drill a new hole to mount the motor. Use an 0-80 screw as there is very
little material.
Life Like Dockside
- Use our drivers #17850 & #17851, two #1720 crankpin screws in front
holes and two #80006 in rear holes. File axle slots in frame with a round
file to accept our drivers.
Part #
Description
Price
1-804
Package (12), Hex Head Screw 0-80x1/4 Inches
$2.30
1-866
Crosshead Guides- 3/64 Sq - H-866
$0.75
1-874
Spacer, S-874-1
$0.75
1-1720
Sort Crank Pin
$0.60
1-6000
Package (10), Handrail Stanchions
$2.25
1-8651
Crosshead Left
$2.95
1-8860
Eccentric Rod - V-886
$0.50
1-9810
Valve Rod - V-981
$0.50
1-9830
Crosshead Link - V-983
$0.50
1-9850
Radius Link - V-985
$0.95
1-9870
Eccentric Crank - V-987
$0.95
1-17810
50 inch Spoke Drivers Dockside
$8.00
1-17820
50"" Driver with Gear Dockside
$9.00
1-17850
50 inch Driver A-5 & Bowser/English/Varney/new Dockside
$8.00
1-17851
50 inch Driver with Gear A-5 & Bowser/English/Varney/new Doc
