History: The PRR CLASS X-31 box cars
had a novel roof design named the "round roof" or "wagon
top". By curving the roof sheets to meet the eave bar vertically (leaving
a 4" inset on the edge) the cars had an inside height of 10'. The X-31's
were used primarily to transport new automoblies or auto parts. The majority
of X-31's are in the X-31, X-31A, X-31B and X-31C sub classes. These classes
had very minor external differences. The X-31's were first built in January
1933. In 1935, the roof of the X-31's was redesigned, with a new inside
height of 10' 5" in the center and 10' 0" at the sides. The external
appearance changed with the roof sheets overlapping the side sheets at the
eaves. This gave a flush apperance to the roof as compared to the inset
of the original design. By 1936, the single door X-31A had replaced the
X-29 as the general service box car. The X-31's were used on the Pennsy
throughout the 1940's, 1950's, and the mid 1960's. The following X-31's
were in service: 8,574 cars in 1936; 10,496 cars in 1939; 9,786 cars in
1944; 9,702 cars in 1953; 9,522 cars in 1960; 1,038 cars in 1968. The Seaboard
purchased 1200 double doorcars and 500 single door cars in the 1940's, the
Detroit Toledo and Ironton purchased 400 double door cars in 1937 and the
Norfolk and Western purchased 300 cars double door cars and 1300 single
door cars between 1936 & 1939. In the late 1940's the DT & I sold
all its 40' round roof cars to the Northern Pacific. Later the cars were
sold to Manufacturers Railway and Detroit and Mackinac.
| The history of
the Pennsylvania Railroad rolling stock lettering is as follows: |
|
|
• |
|
January, 1930 |
Circle Keystone Lettering
was applied. |
|
• |
|
June, 1954 |
Shadow Keystone lettering
was applied. |
|
• |
|
July, 1956 |
Plain Keystone (black car)
was applied. |
|
• |
|
Early 1960's |
PRR Initials started. |
Kit Includes: injection molded plastic
body, doors, roof walk, brake wheel, X2f couplers, one piece molded (coil
semi-elliptic spring) trucks and 33 inch chilled wheels with RP-25 flanges
on brass axles. MADE IN USA. Our model is a prototype Pennsylvania
X-31A class box car kit with INSET and FLUSH ROOF. The production molds
were made using the original PRR drawings as our guide.
Ordering: You can order any quantity. Different
road numbers are available indicated by the following keys in the "Description":
we have 3 road numbers available if the first letter is a plus sign [+]
and we have 12 road numbers if the first letter is an asterisk [*]
.
Listing of Available Models and Associated Car Numbers: The list
below identifies the cars and roadnames that are currently available. Underlined
part numbers have pictures available for you to see on-line by clicking on part
number. Please note that each production run of a roadname uses a new series
of car numbers. We do not re-use a previous numbering series for any subsequent
production run. Thus, we only can fill orders for the most current production
run and associated numbering series. Please refer to our list of PRR X31 40 Foot Round Roof, Double Door Box Car car numbers that have be used and the current numbers which are available.

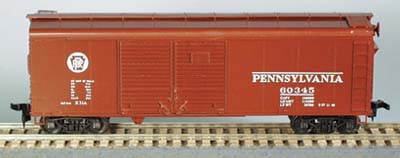

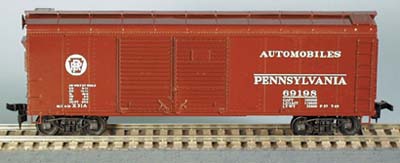

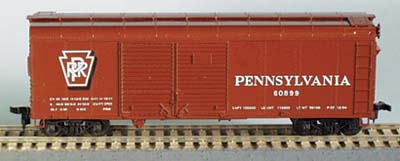

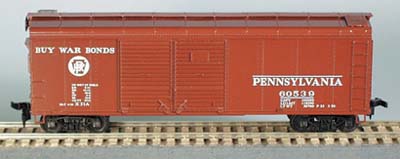

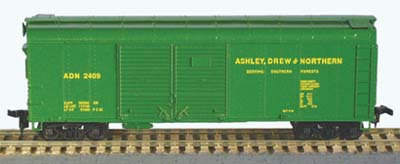

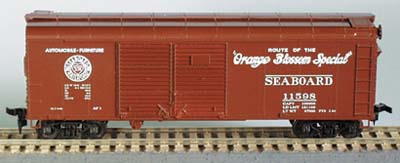

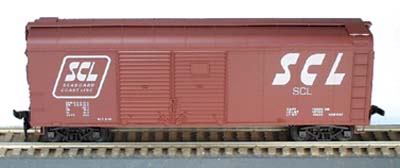

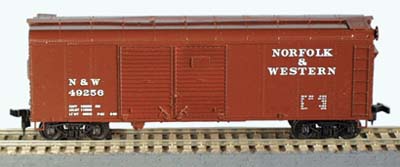

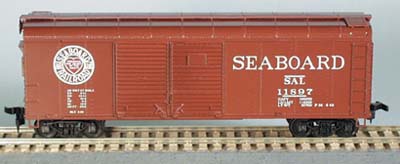

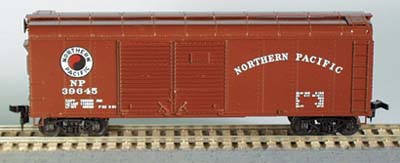

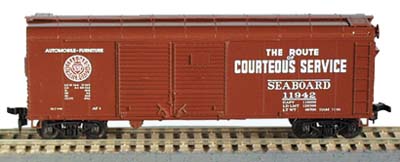

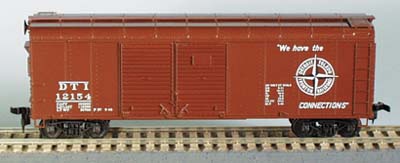

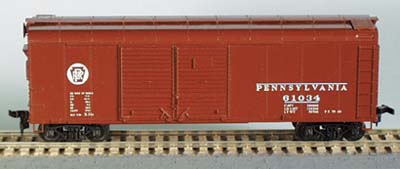

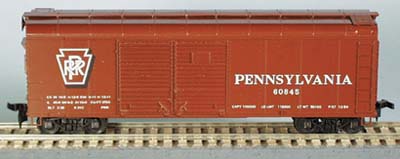

| Part # | Description | Price | | 1-55340 | 40 Foot RR Inset Double Door Box Car Undecorated | * n.a. | | 1-55341 | *40 Foot RR Inset Double Door PRR X31 Circle Keystone | * n.a. | | 1-55342 | *40 Foot RR Inset Double Door PRR X31 Circle Keystone Auto | * n.a. | | 1-55343 | +40 Foot RR Inset Double Door PRR X31 Circle Keystone BUY BONDS | * n.a. | | 1-55344 | *40 Foot RR Inset Double Door PRR X31 Shadow Keystone | * n.a. | | 1-55345 | *40 Foot RR Flush Double Door SAL | * n.a. | | 1-55346 | *40 Foot RR Flush Double Door N&W | * n.a. | | 1-55347 | *40 Foot RR Flush Double Door North Pacific | * n.a. | | 1-55348 | *40 Foot RR Flush Double Door DT&I | * n.a. | | 1-55349 | *40 Foot RR Flush Double Door PRR X31 Circle Keystone | * n.a. | | 1-55350 | 40 Foot RR Flush Double Door Undecorated | * n.a. | | 1-55351 | *40 Foot RR Flush Double Door PRR X31 Circle Keystone Auto | * n.a. | | 1-55352 | 40 Foot RR Flush Double Door PRR X31 Shadow Keystone | * n.a. | | 1-55353 | 40 Foot RR Flush Double Door Route Courteous Service | * n.a. | | 1-55354 | 40 Foot RR Flush Double Door Orange BLOSSOM | * n.a. | | 1-55355 | +40 Foot RR Flush Double Door AD&N | * n.a. | | 1-55356 | +40 Foot RR Flush Double Door SCL | * n.a. | | 1-55361 | *40 Foot RR Flush Double Door SBD ROBERT E LEE | * n.a. |
|
|
